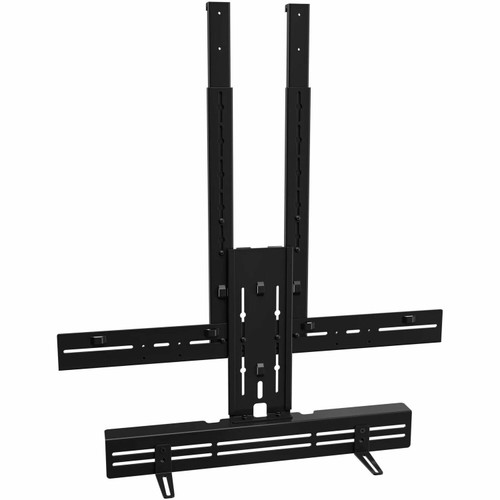

Complete your AV system installations with this Installer Inspired video-sound bar mount for use with Tempo™ Flat Panel In-Wall Mount System. Video-sound bar interface bracket is 22.25” (565 mm) wide by 2.88” (73 mm) tall to avoid peek-a-boo with most video-sound bars. The ample 21.41” (544 mm) wide slot allows you to secure most video-sound bars having rear mounting holes. Quick and easy installation. The video-sound bar mount glides and locks into place on the top and bottom rail of the Tempo Flat Panel In-Wall Mount System.
Video-sound bar interface bracket is 22.25" (565 mm) wide by 2.88" (73 mm) tall to avoid peek-a-boo with most video-sound bars. The ample 21.41" (544 mm) wide slot allows you to secure most video-sound bars having rear mounting holes.
Quick and easy installation. The video-sound bar mount glides and locks into place on the top and bottom rail of the Tempo Flat Panel In-Wall Mount System.
Horizontal lateral shift allows you to position the video-sound bar mount as needed to center with the display.
Height adjustment allows 15.56" (395 mm) of travel to easily position the video-sound bar mount at the right height above or below the display.
Window opening and slots along both sides of the vertical bracket facilitate cable management.
Weight capacity of 20 lbs (9 kg) with video-sound bars mounted to interface bracket. When using "L" brackets to mount a video-sound bar the weight capacity is 15 lbs (6.8 kg).
Fits most video-sound bars having mounting holes in the back or bottom.
IMPORTANT! Installation pre-requisite: Tempo Flat Panel In-Wall Mount System FPIWMS mounting rails must be installed at a minimum 1" depth prior to installation of either FPIWMA100 and FPIWMA101 accessories.
Mounting Bar offers maximum mounting efficiency with added usability
Sustains a maximum load capacity of 20 lb
Lockable feature for better reliance and usability
Flat Panel Display application/usage allows adaptability with easy installment
